运维|devops|JenkinsPipeline流程构建

运维|devops|Jenkins Pipeline流程构建

Jenkins Pipeline

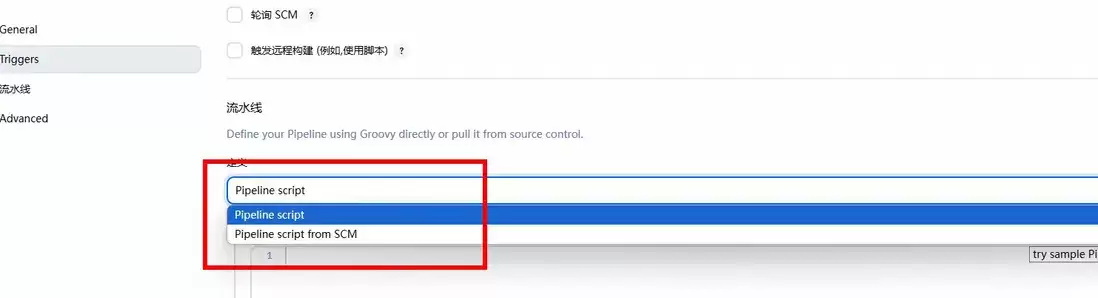

Pipeline script vs Pipeline script from SCM(实操)

• Pipeline script

  流水线代码直接粘贴在 Jenkins 任务页面文本框内，存储在 Jenkins 任务配置数据库中，不关联 Git 仓库

• Pipeline script from SCM

  流水线代码（Jenkinsfile）存放在代码仓库 (Git/SVN)，Jenkins 运行流水线时先拉取代码，读取仓库内的 Jenkinsfile 执行

Jenkinsfile 脚本内容的语法格式如下两种

• Declarative Pipeline（声明式-实操）这套写法，语法更严格，结构也更清晰，读起来一目了然，放到绝大多数项目里都很合适。

  pipeline {
    agent any
    stages {
        stage('构建') {
            steps {
                echo "hello"
            }
        }
    }
  }

• Scripted Pipeline（脚本式）：基于原生 Groovy 编写，自由度很高，尤其适合处理复杂逻辑。

  node {
    stage('构建') {
        echo "hello"
    }
  }

前置条件

服务器端开启ssh登录

• 生成密钥

  ssh-keygen -t rsa -b 4096

• 将公钥添加到本机的 authorized_keys

  cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

• 配置 SSH 服务（/etc/ssh/sshd_config)

  PubkeyAuthentication yes
  PasswordAuthentication yes

• 重启 SSH 服务

  sudo systemctl reload sshd

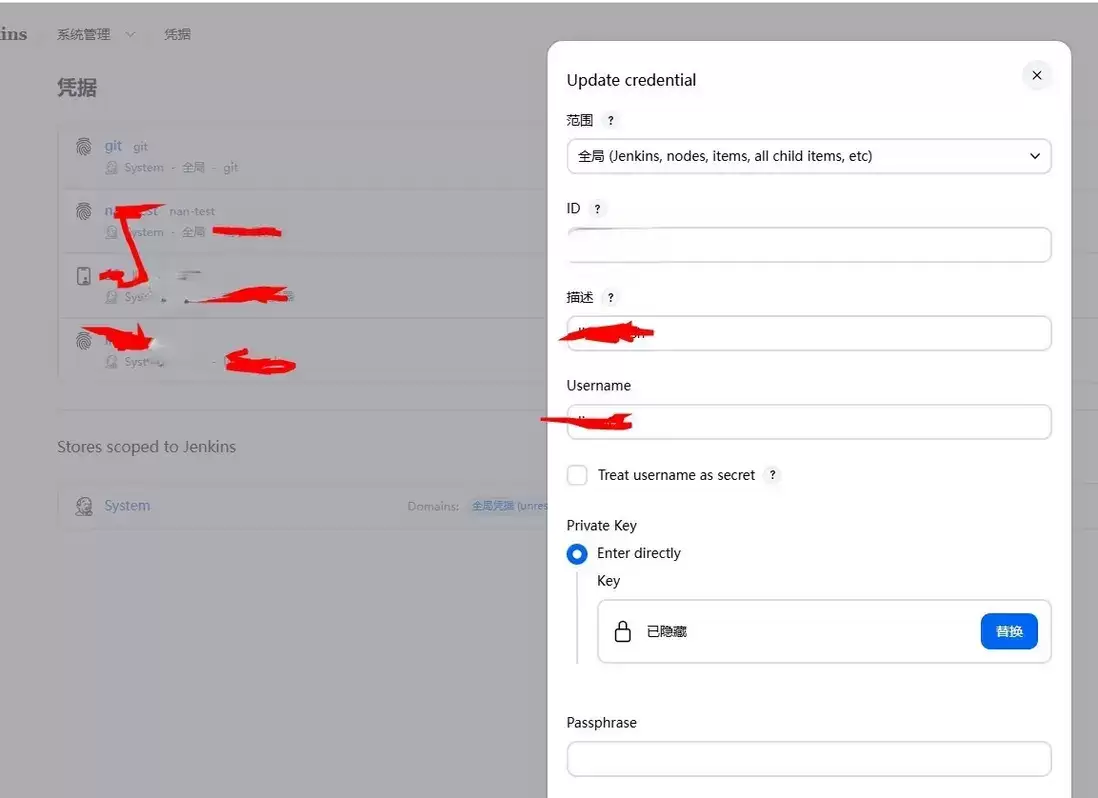

• 将私钥拷贝到Jenkins全局令牌凭证中

Jenkinsfile文件和脚本创建

• 位置参照

  Core（仓库根目录｜父pom）
  ├─ pom.xml                聚合父工程
  ├─ common-core            公共依赖模块（无需Jenkinsfile）
  │  └─ pom.xml
  ├─ Core.Api      业务子模块
  │  ├─ pom.xml
  │  └─ Jenkinsfile          当前模块流水线文件

• Groovy构建脚本(Jenkinsfile)

  pipeline {
    agent any

    options {
        disableConcurrentBuilds()
        timeout(time: 20, unit: 'MINUTES')
        timestamps()
        buildDiscarder(logRotator(numToKeepStr: '10'))
    }

    parameters {
        booleanParam(
            name: 'AUTO_DEPLOY',
            defaultValue: false,
            description: '构建完成自动推送Jar并重启远程服务'
        )
    }

    environment {
        SERVICE_DIR = 'app'
        SERVICE_NAME = 'app'
        JAR_VERSION = '1.0.0-SNAPSHOT'
        JAR_FILE = "${SERVICE_NAME}-${JAR_VERSION}.jar"
        REMOTE_SUB_DIR = "${SERVICE_NAME}"
        REMOTE_FULL_DIR = "/usr/local/${REMOTE_SUB_DIR}"
        LOCAL_JAR_PATH = "${SERVICE_DIR}/target/${JAR_FILE}"
        JA VA_HOME = '/usr/local/jdk21'
        M2_HOME = '/usr/local/ma ven'
        // SSH 配置
        REMOTE_HOST = '192.168.0.66'
        REMOTE_USER = 'test'
        SSH_CREDENTIALS_ID = 'test'
    }

    stages {
        stage('1. 环境信息打印') {
            steps {
                echo "【构建信息】服务名：${env.SERVICE_NAME}｜Jar包：${env.JAR_FILE}"
                echo "本地路径：${env.LOCAL_JAR_PATH}"
                echo "远端目录：${env.REMOTE_FULL_DIR}"
            }
        }

        stage('2. Ma ven编译打包') {
            steps {
                sh '''
                    test -d ${JA VA_HOME} || { echo " JA VA_HOME目录不存在"; exit 1; }
                    test -d ${M2_HOME} || { echo " M2_HOME目录不存在"; exit 1; }
                    ${JA VA_HOME}/bin/ja va -version
                    ${M2_HOME}/bin/mvn -v
                    cd ${SERVICE_DIR}
                    ${M2_HOME}/bin/mvn clean package -DskipTests
                '''
            }
        }

        stage('3. 归档构建产物') {
            steps {
                archiveArtifacts artifacts: "${env.LOCAL_JAR_PATH}", fingerprint: true, onlyIfSuccessful: true
            }
        }

        stage('4. 远程发布部署') {
            when {
                expression { params.AUTO_DEPLOY }
            }
            steps {
                echo "开始推送Jar包并远程重启服务"

                withCredentials([sshUserPrivateKey(
                    credentialsId: "${env.SSH_CREDENTIALS_ID}",
                    keyFileVariable: 'SSH_KEY',
                    usernameVariable: 'SSH_USER'
                )]) {
                    sh """
                        set -e -x
                        # 传输 JAR
                        scp -i $SSH_KEY -o StrictHostKeyChecking=no ${LOCAL_JAR_PATH} ${REMOTE_USER}@${REMOTE_HOST}:${REMOTE_FULL_DIR}/${JAR_FILE}

                        # 远程执行部署【修复pgrep匹配BUG】
                        ssh -i $SSH_KEY -o StrictHostKeyChecking=no ${REMOTE_USER}@${REMOTE_HOST} << 'EOF'
                            export JA VA_HOME=/usr/local/jdk-21.0.11
                            SERVICE_NAME=${SERVICE_NAME}
                            REMOTE_FULL_DIR=${REMOTE_FULL_DIR}
                            JAR_FILE=${JAR_FILE}

                            mkdir -p ${REMOTE_FULL_DIR}
                            cd ${REMOTE_FULL_DIR}

                            # 根据服务名杀死进程，不再写死jar名称
                            pkill -f "${SERVICE_NAME}" || true
                            sleep 1

                            # 后台启动服务
                            nohup ${JA VA_HOME}/bin/ja va -jar ${JAR_FILE} > app.log 2>&1 &
                            sleep 3

                            # 校验进程：匹配服务名称，不再匹配jar短文件名
                            if pgrep -f "${SERVICE_NAME}" > /dev/null; then
                                echo " 服务启动成功"
                            else
                                echo " 服务启动失败，打印最近日志"
                                [ -f app.log ] && tail -15 app.log || echo "app.log 文件尚未生成"
                                exit 1
                            fi
  EOF
                    """
                }

                echo "远程部署流程执行完毕"
            }
        }
    }

    post {
        always {
            echo "【Post钩子】流水线构建结束"
        }
        success {
            cleanWs()
            echo " 流水线全部执行成功！"
        }
        failure {
            echo " 流水线执行失败，请查看日志排查问题！"
        }
    }
  }

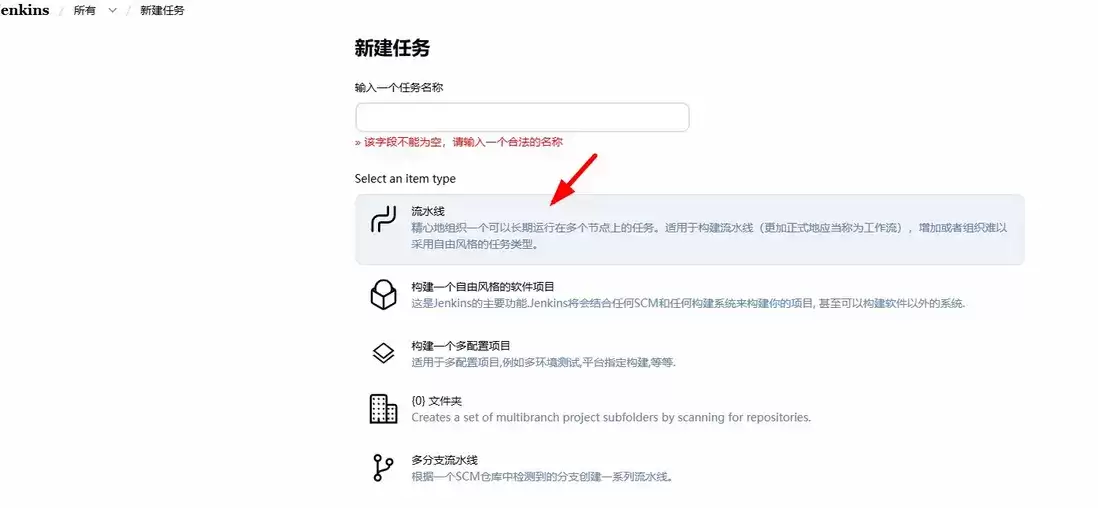

创建Pipeline任务

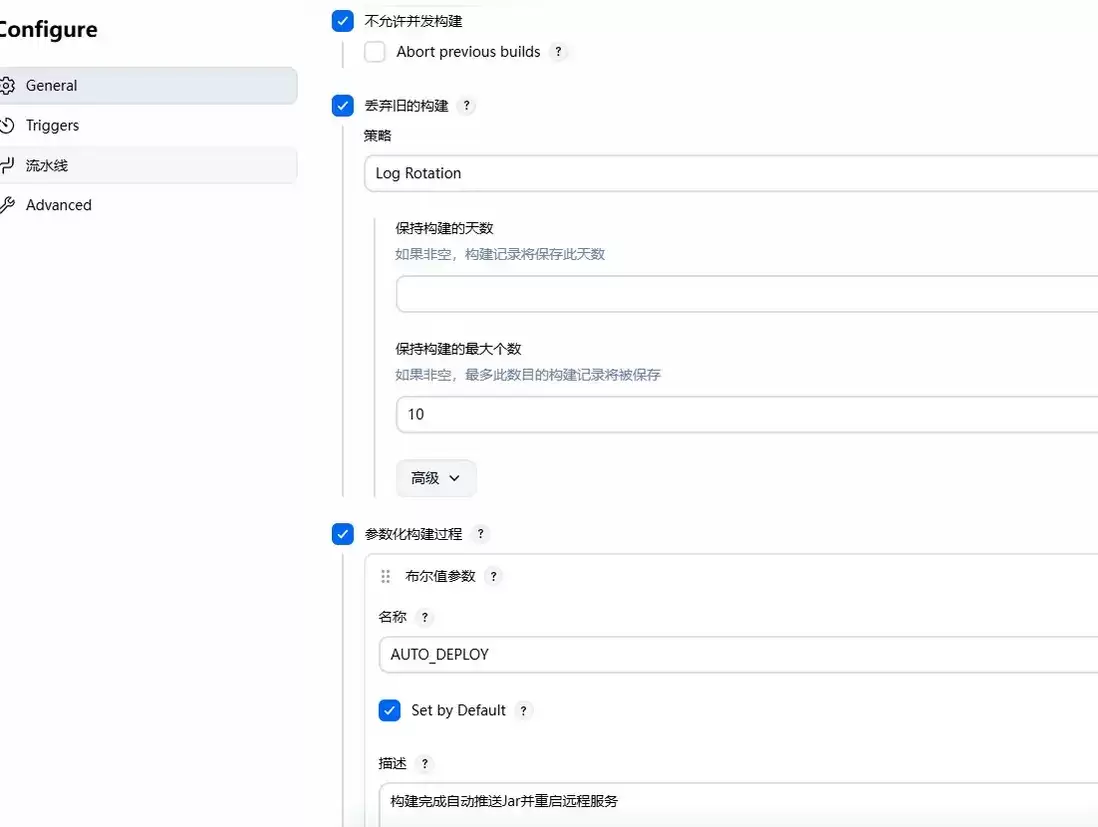

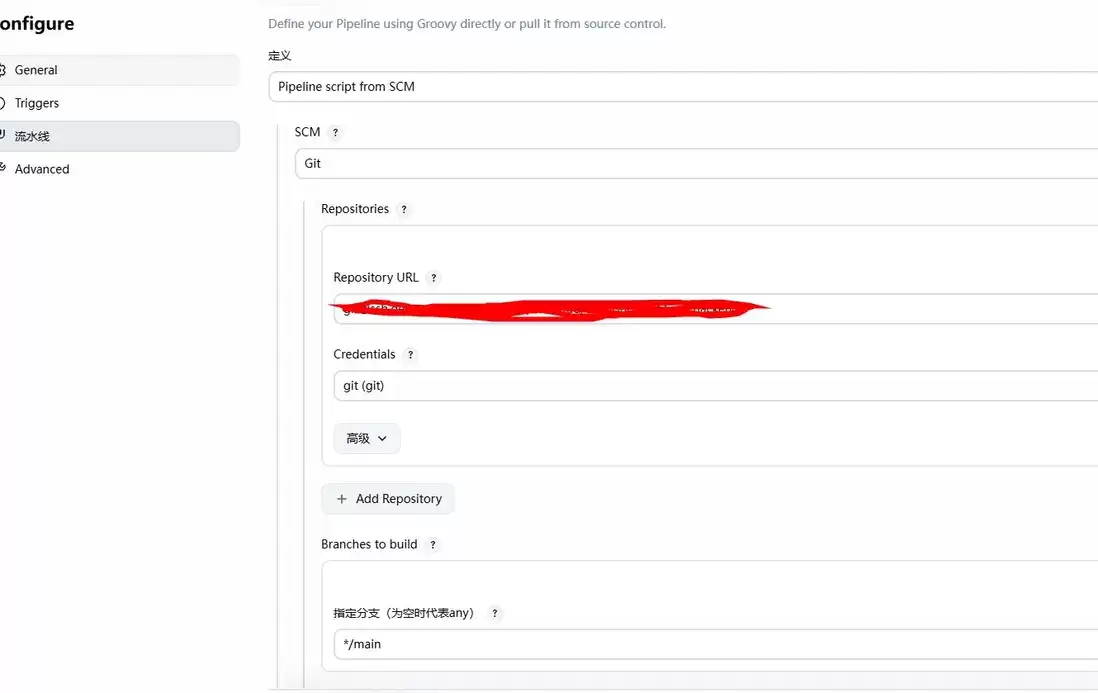

构建相关pipeline

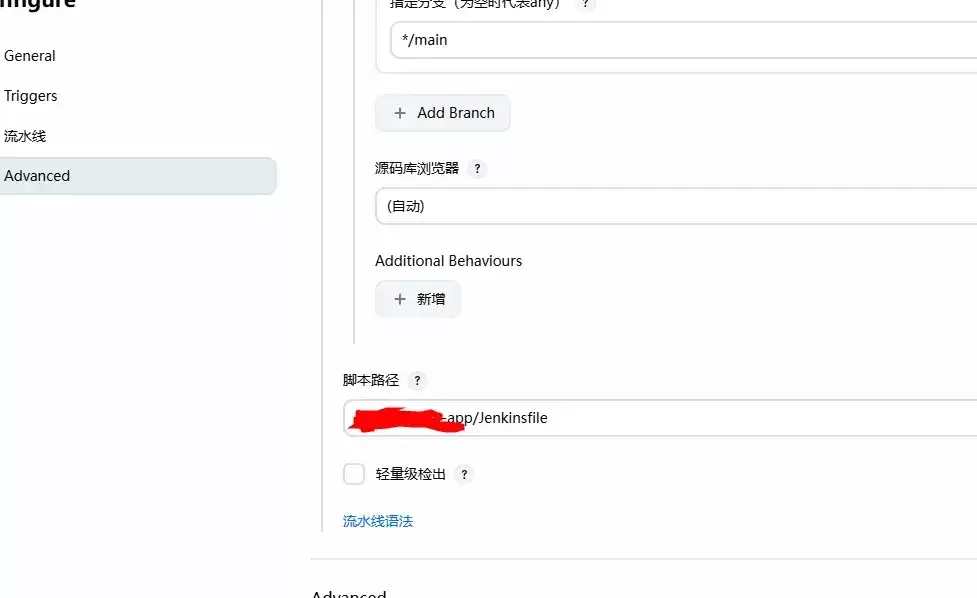

• 脚本指向路径

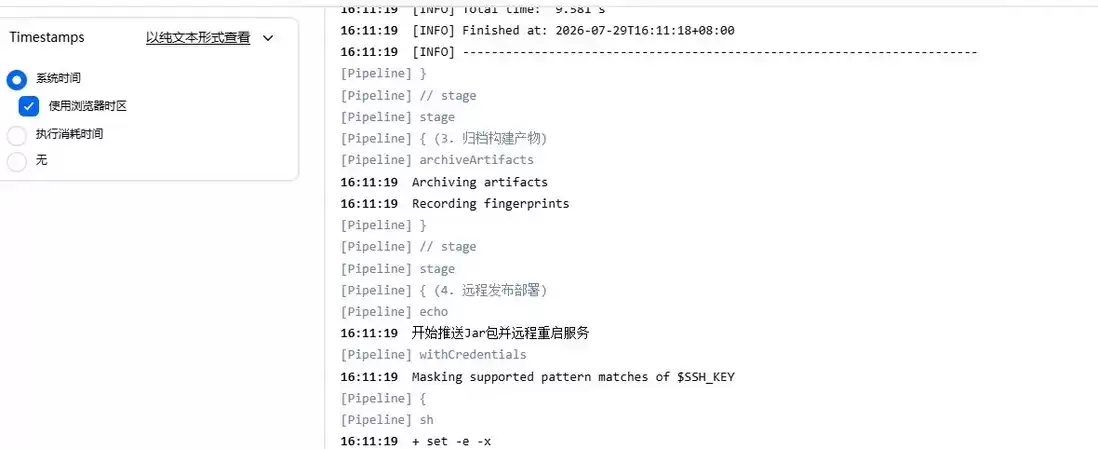

执行构建结果

优化脚本

pipeline {
    agent any

    options {
        disableConcurrentBuilds()
        timeout(time: 20, unit: 'MINUTES')
        timestamps()
        buildDiscarder(logRotator(numToKeepStr: '10'))
    }

    parameters {
        booleanParam(
            name: 'AUTO_DEPLOY',
            defaultValue: false,
            description: '构建完成自动推送Jar并重启远程服务'
        )
    }

    environment {
        SERVICE_DIR = 'app'
        SERVICE_NAME = 'app'
        JAR_VERSION = '1.0.0-SNAPSHOT'
        JAR_FILE = "${SERVICE_NAME}-${JAR_VERSION}.jar"
        REMOTE_SUB_DIR = "${SERVICE_NAME}"
        REMOTE_FULL_DIR = "/usr/local/${REMOTE_SUB_DIR}"
        LOCAL_JAR_PATH = "${SERVICE_DIR}/target/${JAR_FILE}"
        JA VA_HOME = '/usr/local/jdk21'
        M2_HOME = '/usr/local/ma ven'
        REMOTE_HOST = '192.168.0.66'
        REMOTE_USER = 'test'
        SSH_CREDENTIALS_ID = 'test'
    }

    stages {
        stage('1. 环境信息 & Git提交日志打印') {
            steps {
                sh '''#!/bin/bash
                    echo "==================== Git 最新提交信息 ===================="
                    echo "短提交号: $(git rev-parse --short HEAD)"
                    echo "完整commit: $(git rev-parse HEAD)"
                    echo "提交人姓名: $(git log -1 --pretty=%an)"
                    echo "提交备注:"
                    git log -1 --pretty=%B
                    echo "=========================================================="
                '''

                echo "【构建信息】服务名：${env.SERVICE_NAME}｜Jar包：${env.JAR_FILE}"
                echo "本地路径：${env.LOCAL_JAR_PATH}"
                echo "远端目录：${env.REMOTE_FULL_DIR}"
            }
        }

        stage('2. Ma ven编译打包') {
            steps {
                sh '''#!/bin/bash
                    test -d ${JA VA_HOME} || { echo " JA VA_HOME目录不存在"; exit 1; }
                    test -d ${M2_HOME} || { echo " M2_HOME目录不存在"; exit 1; }
                    ${JA VA_HOME}/bin/ja va -version
                    ${M2_HOME}/bin/mvn -v
                    cd ${SERVICE_DIR}
                    ${M2_HOME}/bin/mvn clean package -DskipTests
                '''
            }
        }

        stage('3. 归档构建产物') {
            steps {
                archiveArtifacts artifacts: "${env.LOCAL_JAR_PATH}", fingerprint: true, onlyIfSuccessful: true
            }
        }

        stage('4. 远程发布部署') {
            when {
                expression { params.AUTO_DEPLOY }
            }
            steps {
                echo "开始推送Jar包并远程重启服务"

                withCredentials([sshUserPrivateKey(
                    credentialsId: "${env.SSH_CREDENTIALS_ID}",
                    keyFileVariable: 'SSH_KEY',
                    usernameVariable: 'SSH_USER'
                )]) {
                    // ===== 使用三双引号 """ 允许Groovy解析Jenkins环境变量 =====
                    sh """#!/bin/bash
                        set -e -x
                        scp -i $SSH_KEY -o StrictHostKeyChecking=no ${LOCAL_JAR_PATH} ${REMOTE_USER}@${REMOTE_HOST}:${REMOTE_FULL_DIR}/${JAR_FILE}

                        ssh -i $SSH_KEY -o StrictHostKeyChecking=no ${REMOTE_USER}@${REMOTE_HOST} << EOF
                            SERVICE_NAME=${SERVICE_NAME}
                            REMOTE_FULL_DIR=${REMOTE_FULL_DIR}
                            JAR_FILE=${JAR_FILE}

                            mkdir -p ${REMOTE_FULL_DIR}
                            cd ${REMOTE_FULL_DIR}

                            echo "【1】优雅停止旧服务进程"
                            pgrep -f "ja va.*${SERVICE_NAME}" | xargs kill -15 2>/dev/null || true
                            sleep 2
                            pgrep -f "ja va.*${SERVICE_NAME}" | xargs kill -9 2>/dev/null || true
                            sleep 1

                            echo "【2】启动新服务 >> 追加日志，不再清空日志文件"
                            # 远端服务器JA VA路径【硬编码】，彻底避开变量冲突大坑
                            nohup /usr/local/jdk-21.0.11/bin/ja va -Dfile.encoding=UTF-8 -jar ${JAR_FILE} >> app.log 2>&1 &
                            sleep 3

                            echo "========== 远端应用启动日志（尾部30行） =========="
                            [ -f app.log ] && tail -30 app.log || echo "app.log 文件尚未生成"
                            echo "===================================================="

                            echo "【3】校验进程状态"
                            if pgrep -f "ja va.*${SERVICE_NAME}" > /dev/null; then
                                echo " 服务进程启动成功"
                            else
                                echo " 服务启动失败！"
                                exit 1
                            fi
EOF
                    """
                }

                echo "远程部署流程执行完毕"
            }
        }
    }

    post {
        always {
            echo "【Post钩子】流水线构建结束"
        }
        success {
            cleanWs()
            echo " 流水线全部执行成功！"
        }
        failure {
            echo " 流水线执行失败，请查看日志排查问题！"
        }
    }
}

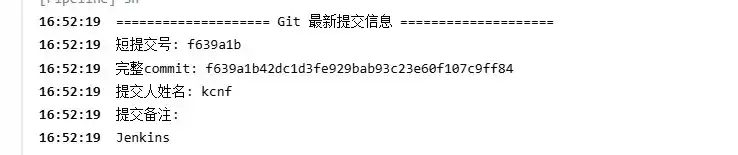

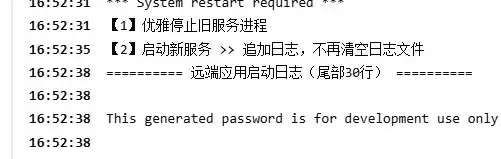

优化脚本之后
