Springboot自动装配之注入DispatcherServlet怎么实现

原理概述

Springboot向外界提供web服务，底层依赖了springframework中的web模块（包含但不限于spring mvc核心类DispatcherServlet）来实现

那么springboot在什么时机向容器注入DispatcherServlet这个核心类的呢
注入的流程还是遵循了自动装配流程，在springboot框架里默认提供了该自动装配的支持

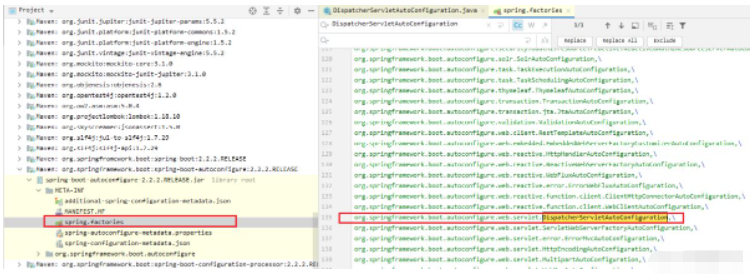

在jar包里的spring.factories文件里有个 org.springframework.boot.autoconfigure.web.servlet.DispatcherServletAutoConfiguration配置

@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass(DispatcherServlet.class)
@AutoConfigureAfter(ServletWebServerFactoryAutoConfiguration.class)
public class DispatcherServletAutoConfiguration {
	/*
	 * The bean name for a DispatcherServlet that will be mapped to the root URL "/"
	 */
	public static final String DEFAULT_DISPATCHER_SERVLET_BEAN_NAME = "dispatcherServlet";
	/*
	 * The bean name for a ServletRegistrationBean for the DispatcherServlet "/"
	 *
	public static final String DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME = "dispatcherServletRegistration";
	// ... 省略代码
	}

在DispatcherServletAutoConfiguration中有两个内部类（配置类） DispatcherServletConfiguration、DispatcherServletRegistrationConfiguration和两个对应的Condition类DefaultDispatcherServletCondition、DispatcherServletRegistrationCondition

DispatcherServletConfiguration

DispatcherServletConfiguration是DispatcherServletAutoConfiguration 的一个内部类，并被 @Configuration标注，会被容器自动扫描到；其有两个方法： 1、dispatcherServlet；2、multipartResolver

	@Configuration(proxyBeanMethods = false)
	@Conditional(DefaultDispatcherServletCondition.class)
	@ConditionalOnClass(ServletRegistration.class)
	@EnableConfigurationProperties({ HttpProperties.class, WebMvcProperties.class })
	protected static class DispatcherServletConfiguration {

// @A
		@Bean(name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
		public DispatcherServlet dispatcherServlet(HttpProperties httpProperties, WebMvcProperties webMvcProperties) {
			DispatcherServlet dispatcherServlet = new DispatcherServlet();
			dispatcherServlet.setDispatchOptionsRequest(webMvcProperties.isDispatchOptionsRequest());
			dispatcherServlet.setDispatchTraceRequest(webMvcProperties.isDispatchTraceRequest());
			dispatcherServlet.setThrowExceptionIfNoHandlerFound(webMvcProperties.isThrowExceptionIfNoHandlerFound());
			dispatcherServlet.setPublishEvents(webMvcProperties.isPublishRequestHandledEvents());
			dispatcherServlet.setEnableLoggingRequestDetails(httpProperties.isLogRequestDetails());
			return dispatcherServlet;
		}

// @B
		@Bean
		@ConditionalOnBean(MultipartResolver.class)
		@ConditionalOnMissingBean(name = DispatcherServlet.MULTIPART_RESOLVER_BEAN_NAME)
		public MultipartResolver multipartResolver(MultipartResolver resolver) {
			// Detect if the user has created a MultipartResolver but named it incorrectly
			return resolver;
		}
	}

@A：

• @Configuration(proxyBeanMethods = false)：配置类采用Lite模式

• @Conditional(DefaultDispatcherServletCondition.class)：根据DefaultDispatcherServletCondition类返回值计算是否要注入，主要逻辑是检验Spring容器中是否已经存在一个名字为"dispatcherServlet"的DispatcherServlet

• @ConditionalOnClass(ServletRegistration.class)：容器中必须要有ServletRegistration类

• @EnableConfigurationProperties({ HttpProperties.class, WebMvcProperties.class })：加载HttpProperties和WebMvcProperties

@B：注入 MultipartResolver 解析类

DispatcherServletRegistrationConfiguration

该类注入的逻辑与DispatcherServletConfiguration 相同，只不过在类上注解了 @Import(DispatcherServletConfiguration.class)那么这两个类定义就有了先后顺序

@Configuration(proxyBeanMethods = false)
	@Conditional(DispatcherServletRegistrationCondition.class)
	@ConditionalOnClass(ServletRegistration.class)
	@EnableConfigurationProperties(WebMvcProperties.class)
	@Import(DispatcherServletConfiguration.class) //@A
	protected static class DispatcherServletRegistrationConfiguration {

		@Bean(name = DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME)
		@ConditionalOnBean(value = DispatcherServlet.class, name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
		public DispatcherServletRegistrationBean dispatcherServletRegistration(DispatcherServlet dispatcherServlet,
				WebMvcProperties webMvcProperties, ObjectProvider multipartConfig) {
			DispatcherServletRegistrationBean registration = new DispatcherServletRegistrationBean(dispatcherServlet,
					webMvcProperties.getServlet().getPath());
			// 设置名称
			registration.setName(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME);
			registration.setLoadOnStartup(webMvcProperties.getServlet().getLoadOnStartup());
			multipartConfig.ifAvailable(registration::setMultipartConfig);
			return registration;
		}
	}

其中，DispatcherServletRegistrationBean继承自ServletRegistrationBean，主要为DispatcherServlet提供服务。DispatcherServletRegistrationBean和DispatcherServlet都提供了注册Servlet并公开DispatcherServletPath信息的功能
