如何使用SpringBoot+Redis+Lua实现分布式限流？

Redis支持LUA脚本的主要优势

LUA脚本的融合将使Redis数据库产生更多的使用场景，迸发更多新的优势：

• 高效性：减少网络开销及时延，多次redis服务器网络请求的操作，使用LUA脚本可以用一个请求完成

• 数据可靠性：Redis会将整个脚本作为一个整体执行，中间不会被其他命令插入。

• 复用性：LUA脚本执行后会永久存储在Redis服务器端，其他客户端可以直接复用

• 可嵌入性：可嵌入JAVA，C#等多种编程语言，支持不同操作系统跨平台交互

• 简单强大：小巧轻便，资源占用率低，支持过程化和对象化的编程语言

自己也是第一次在工作中使用lua这种语言，记录一下

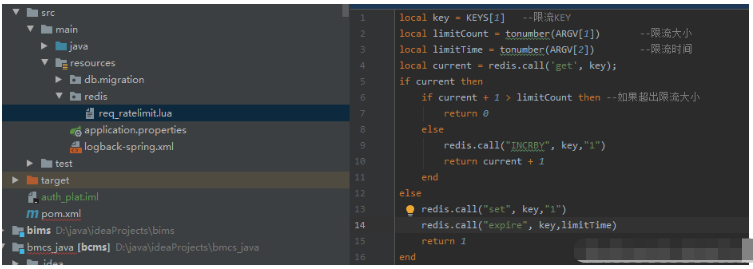

创建Lua文件req_ratelimit.lua

local key = KEYS[1]   --限流KEY
local limitCount = tonumber(ARGV[1])       --限流大小
local limitTime = tonumber(ARGV[2])        --限流时间
local current = redis.call('get', key);
if current then
    if current + 1 > limitCount then --如果超出限流大小
        return 0
    else
        redis.call("INCRBY", key,"1")
        return current + 1
    end
else
    redis.call("set", key,"1")
    redis.call("expire", key,limitTime)
    return 1
end

自定义注解RateLimiter

package com.shinedata.ann;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;


@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
public @interface RateLimiter {

    /**
     * 限流唯一标识
     * @return
     */
    String key() default "rate.limit:";

    /**
     * 限流时间
     * @return
     */
    int time() default 1;

    /**
     * 限流次数
     * @return
     */
    int count() default 100;

    /**
     *是否限制IP,默认 否
     * @return
     */
    boolean restrictionsIp() default false;
}

定义切面RateLimiterAspect

package com.shinedata.aop;

import com.shinedata.ann.RateLimiter;
import com.shinedata.config.redis.RedisUtils;
import com.shinedata.exception.RateLimiterException;
import org.apache.commons.lang3.StringUtils;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.reflect.MethodSignature;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.scripting.support.ResourceScriptSource;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.annotation.PostConstruct;
import javax.servlet.http.HttpServletRequest;
import java.io.Serializable;
import java.lang.reflect.Method;
import java.util.Collections;
import java.util.List;

/**
 * @ClassName RateLimiterAspect
 * @Author yupanpan
 * @Date 2020/5/6 13:46
 */
@Aspect
@Component
public class RateLimiterAspect {

    private final Logger logger	= LoggerFactory.getLogger(this.getClass());

    private static ThreadLocal ipThreadLocal=new ThreadLocal();

    private DefaultRedisScript redisScript;

    @PostConstruct
    public void init(){
        redisScript = new DefaultRedisScript();
        redisScript.setResultType(Number.class);
        redisScript.setScriptSource(new ResourceScriptSource(new ClassPathResource("redis/req_ratelimit.lua")));
    }

    @Around("@annotation(com.shinedata.ann.RateLimiter)")
    public Object interceptor(ProceedingJoinPoint joinPoint) throws Throwable {
        try {
            MethodSignature signature = (MethodSignature) joinPoint.getSignature();
            Method method = signature.getMethod();
            Class targetClass = method.getDeclaringClass();
            RateLimiter rateLimit = method.getAnnotation(RateLimiter.class);

            if (rateLimit != null) {
                HttpServletRequest request = ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest();
                boolean restrictionsIp = rateLimit.restrictionsIp();
                if(restrictionsIp){
                    ipThreadLocal.set(getIpAddr(request));
                }

                StringBuffer stringBuffer = new StringBuffer();
                stringBuffer.append(rateLimit.key());
                if(StringUtils.isNotBlank(ipThreadLocal.get())){
                    stringBuffer.append(ipThreadLocal.get()).append("-");
                }
                stringBuffer.append("-").append(targetClass.getName()).append("- ").append(method.getName());

                List keys = Collections.singletonList(stringBuffer.toString());

                Number number = RedisUtils.execute(redisScript, keys, rateLimit.count(), rateLimit.time());

                if (number != null && number.intValue() != 0 && number.intValue() <= rateLimit.count()) {
                    logger.info("限流时间段内访问第：{} 次", number.toString());
                    return joinPoint.proceed();
                }else {
                    logger.error("已经到设置限流次数,当前次数:{}",number.toString());
                    throw new RateLimiterException("服务器繁忙,请稍后再试");
                }
            } else {
                return joinPoint.proceed();
            }
        }finally {
            ipThreadLocal.remove();
        }
    }

    public static String getIpAddr(HttpServletRequest request) {
        String ipAddress = null;
        try {
            ipAddress = request.getHeader("x-forwarded-for");
            if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
                ipAddress = request.getHeader("Proxy-Client-IP");
            }
            if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
                ipAddress = request.getHeader("WL-Proxy-Client-IP");
            }
            if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
                ipAddress = request.getRemoteAddr();
            }
            // 对于通过多个代理的情况，第一个IP为客户端真实IP,多个IP按照','分割
            if (ipAddress != null && ipAddress.length() > 15) {
                // "***.***.***.***".length()= 15
                if (ipAddress.indexOf(",") > 0) {
                    ipAddress = ipAddress.substring(0, ipAddress.indexOf(","));
                }
            }
        } catch (Exception e) {
            ipAddress = "";
        }
        return ipAddress;
    }
}

Spring data redis提供了DefaultRedisScript来使用lua和redis进行交互，具体的详情网上很多文章,这里使用ThreadLocal是因为IP存在可变的，保证自己的线程的IP不会被其他线程所修改，切记要最后清理ThreadLocal,防止内存泄漏

RedisUtils工具类(方法太多,只展示execute方法)

package com.shinedata.config.redis;

import org.checkerframework.checker.units.qual.K;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.data.redis.core.script.RedisScript;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import javax.annotation.PostConstruct;
import java.util.List;
import java.util.Map;
import java.util.Set;
import java.util.concurrent.TimeUnit;

/**
 * @ClassName RedisUtils
 * @Author yupanpan
 * @Date 2019/11/20 13:38
 */
@Component
public class RedisUtils {

    @Autowired
    @Qualifier("redisTemplate")
    private RedisTemplate redisTemplate;

    private static RedisUtils redisUtils;

    @PostConstruct
    public void init() {
        redisUtils = this;
        redisUtils.redisTemplate = this.redisTemplate;
    }

    public static Number execute(DefaultRedisScript script, List keys, Object... args) {
        return redisUtils.redisTemplate.execute(script, keys,args);
    }
}

自己配置的RedisTemplate

package com.shinedata.config.redis;

import org.apache.log4j.LogManager;
import org.apache.log4j.Logger;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import redis.clients.jedis.JedisPoolConfig;

/**
 * @ClassName RedisConfig
 * @Author yupanpan
 * @Date 2019/11/20 13:26
 */
@Configuration
public class RedisConfig extends RedisProperties{

    protected Logger log = LogManager.getLogger(RedisConfig.class);

    /**
     * JedisPoolConfig 连接池
     * @return
     */
    @Bean("jedisPoolConfig")
    public JedisPoolConfig jedisPoolConfig() {
        JedisPoolConfig jedisPoolConfig = new JedisPoolConfig();
        // 最大空闲数
        jedisPoolConfig.setMaxIdle(500);
        jedisPoolConfig.setMinIdle(100);
        // 连接池的最大数据库连接数
        jedisPoolConfig.setMaxTotal(6000);
        // 最大建立连接等待时间
        jedisPoolConfig.setMaxWaitMillis(5000);
        // 逐出连接的最小空闲时间 默认1800000毫秒(30分钟)
        jedisPoolConfig.setMinEvictableIdleTimeMillis(100);
        // 每次逐出检查时 逐出的最大数目 如果为负数就是 : 1/abs(n), 默认3
//        jedisPoolConfig.setNumTestsPerEvictionRun(numTestsPerEvictionRun);
        // 逐出扫描的时间间隔(毫秒) 如果为负数,则不运行逐出线程, 默认-1
        jedisPoolConfig.setTimeBetweenEvictionRunsMillis(600);
        // 是否在从池中取出连接前进行检验,如果检验失败,则从池中去除连接并尝试取出另一个
        jedisPoolConfig.setTestOnBorrow(true);
        // 在空闲时检查有效性, 默认false
        jedisPoolConfig.setTestWhileIdle(false);
        return jedisPoolConfig;
    }

    /**
     * JedisConnectionFactory
     * @param jedisPoolConfig
     */
    @Bean("jedisConnectionFactory")
    public JedisConnectionFactory jedisConnectionFactory(@Qualifier("jedisPoolConfig")JedisPoolConfig jedisPoolConfig) {
        JedisConnectionFactory JedisConnectionFactory = new JedisConnectionFactory(jedisPoolConfig);
        // 连接池
        JedisConnectionFactory.setPoolConfig(jedisPoolConfig);
        // IP地址
        JedisConnectionFactory.setHostName(redisHost);
        // 端口号
        JedisConnectionFactory.setPort(redisPort);
        // 如果Redis设置有密码
         JedisConnectionFactory.setPassword(redisPassword);
        // 客户端超时时间单位是毫秒
        JedisConnectionFactory.setTimeout(10000);
        return JedisConnectionFactory;
    }

    /**
     * 实例化 RedisTemplate 对象代替原有的RedisTemplate
     * @return
     */
    @Bean("redisTemplate")
    public RedisTemplate functionDomainRedisTemplate(@Qualifier("jedisConnectionFactory") RedisConnectionFactory redisConnectionFactory) {
        RedisTemplate redisTemplate = new RedisTemplate<>();
        initDomainRedisTemplate(redisTemplate, redisConnectionFactory);
        return redisTemplate;
    }

    /**
     * 设置数据存入 redis 的序列化方式
     * @param redisTemplate
     * @param factory
     */
    private void initDomainRedisTemplate(RedisTemplate redisTemplate, RedisConnectionFactory factory) {
        // 如果不配置Serializer，那么存储的时候缺省使用String，比如如果用User类型存储，那么会提示错误User can't cast
        // to String！
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());
        redisTemplate.setValueSerializer(new GenericJackson2JsonRedisSerializer());
        // 开启事务/true必须手动释放连接，false会自动释放连接 如果调用方有用@Transactional做事务控制，可以开启事务,Spring会处理连接问题
        redisTemplate.setEnableTransactionSupport(false);
        redisTemplate.setConnectionFactory(factory);
    }
}

全局Controller异常处理GlobalExceptionHandler

package com.shinedata.exception;

import com.fasterxml.jackson.databind.JsonMappingException;
import com.shinedata.util.ResultData;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseStatus;
import org.springframework.web.bind.annotation.RestControllerAdvice;

@RestControllerAdvice
public class GlobalExceptionHandler {

    private Logger logger = LoggerFactory.getLogger(GlobalExceptionHandler.class);

    @ExceptionHandler(value = RateLimiterException.class)
    @ResponseStatus(HttpStatus.OK)
    public ResultData runtimeExceptionHandler(RateLimiterException e) {
        logger.error("系统错误:", e);
        return ResultData.getResultError(StringUtils.isNotBlank(e.getMessage()) ? e.getMessage() : "处理失败");
    }

    @ExceptionHandler(value = Exception.class)
    @ResponseStatus(HttpStatus.OK)
    public ResultData runtimeExceptionHandler(RuntimeException e) {
        Throwable cause = e.getCause();
        logger.error("系统错误:", e);
        logger.error(e.getMessage());
        if (cause instanceof JsonMappingException) {
            return ResultData.getResultError("参数错误");
        }
        return ResultData.getResultError(StringUtils.isNotBlank(e.getMessage()) ? e.getMessage() : "处理失败");
    }

}

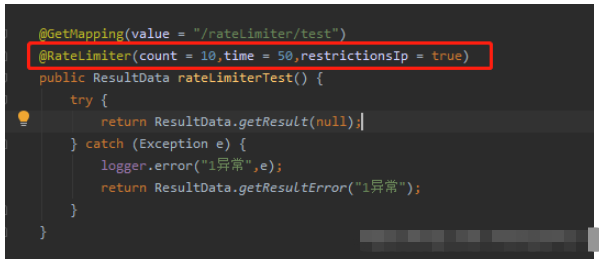

使用就很简单了，一个注解搞定

补充:优化了lua为

local key = KEYS[1]
local limitCount = tonumber(ARGV[1])
local limitTime = tonumber(ARGV[2])
local current = redis.call('get', key);
if current then
    redis.call("INCRBY", key,"1")
    return current + 1
else
    redis.call("set", key,"1")
    redis.call("expire", key,limitTime)
    return 1
end
